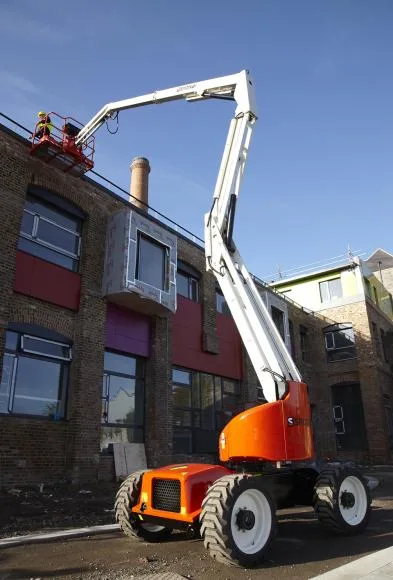

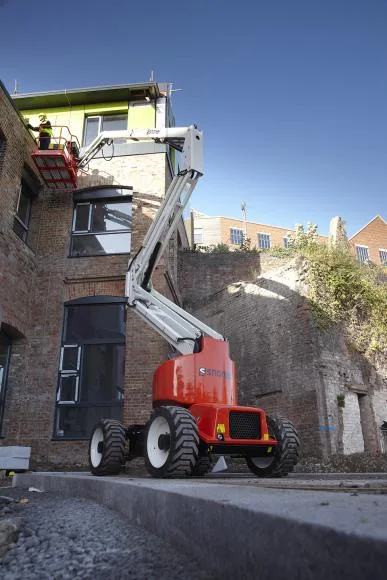

Snorkel A46JRT – 46ft Articulated Boom Lift (Knuckle Boom)
Reach new heights with the versatile Snorkel A46JRT, offering a maximum working height of 16.3m and a horizontal reach of 7.35m — perfect for jobs requiring precision access in tight or complex spaces.
🔹 Working Height: 16.3m
🔹 Horizontal Reach: 7.35m
🔹 Platform Capacity: 227 kg
🔹 Platform Size: 990 mm x 1830 mm
🔹 Power: Kubota V1505 24.9hp Diesel Engine
🔹 Drive: 4-wheel drive with zero tailswing
🔹 Jib Length & Arc: 1.5m with 140° movement
🔹 Platform Rotation: 160°
🔹 Superstructure Rotation: 360° non-continuous
🔹 Stowed Height: 2.18 m
🔹 Ground Clearance: 330 mm
🔹 Chassis Width: 2.08 m
🔹 Tires: Foam-filled lug tires (355/55D625)
🔹 Max Drive Speed: 6.4 km/h (stowed), 1.3 km/h (elevated)
🔹 Features: Oscillating front axle, Snorkel Guard secondary guarding system for safety
Ideal for construction, maintenance, and industrial tasks, the Snorkel A46JRT combines power, reach, and maneuverability for demanding aerial work.
